AW Extra 5/16/13 – Make Corner Splines

 In Questions And Answers, Techniques

Make Corner Splines

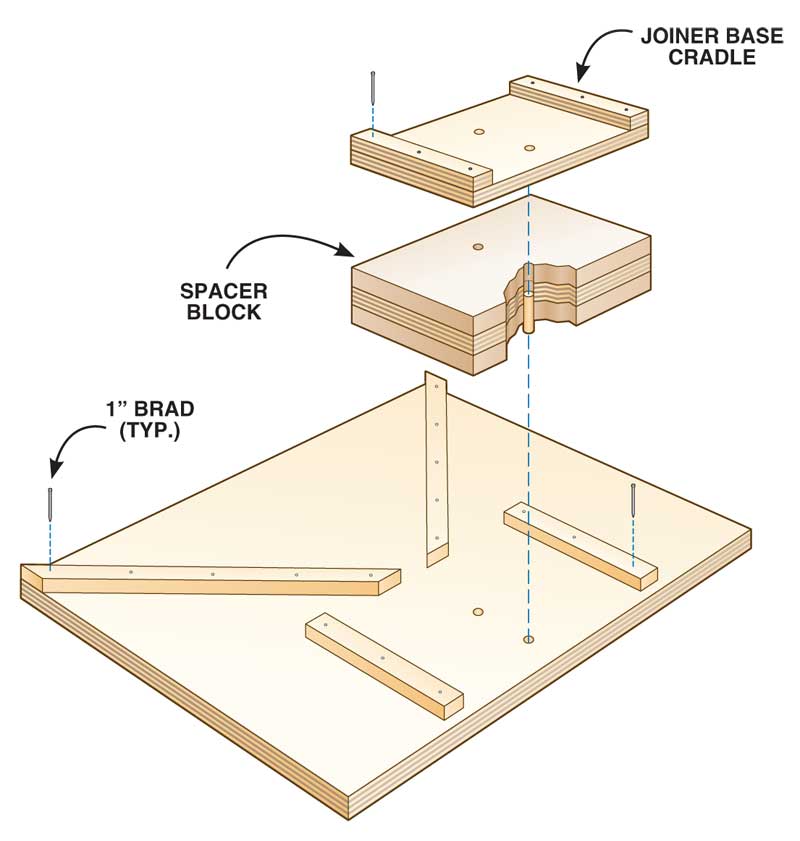

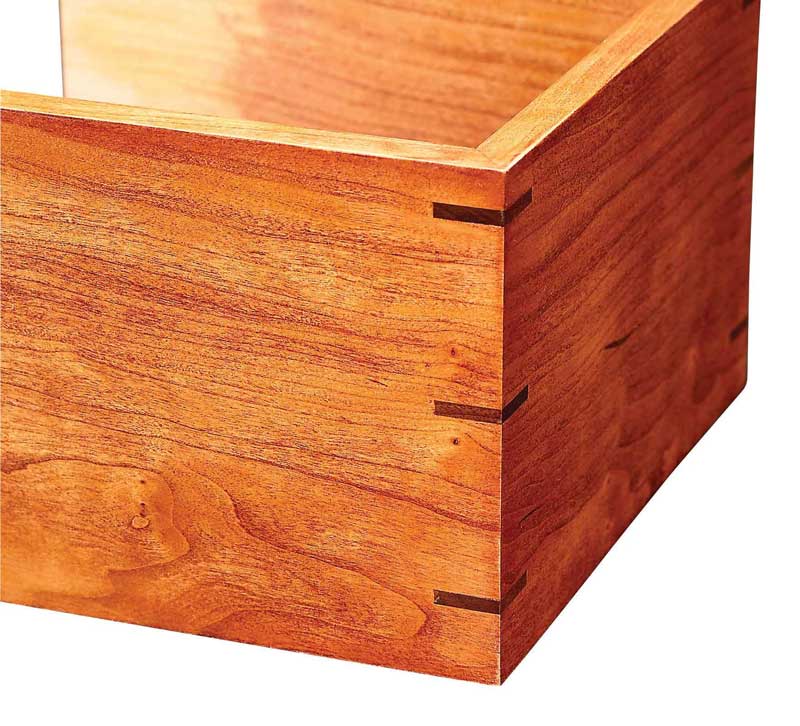

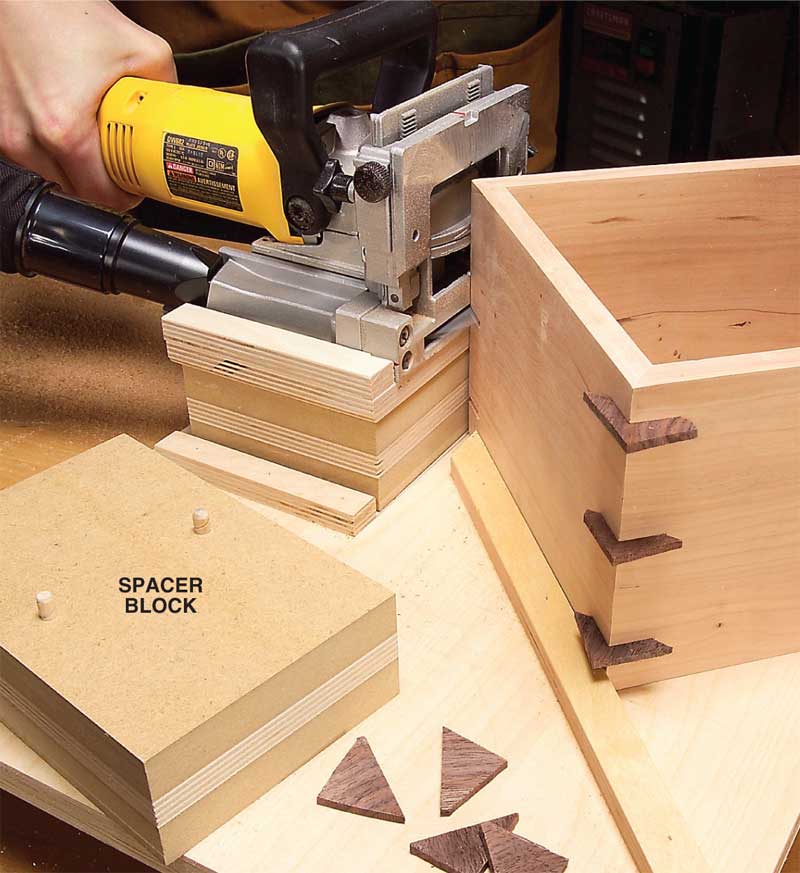

Decorative corner splines sure make an ordinary box look great. But they can be a bit dicey to cut on a tablesaw. Let your plate joiner come to the rescue. A simple jig holds the box and the joiner so you can cut slots quickly with minimal setup hassles. The jig is nothing more than a piece of scrap plywood with two wood strips set at 90 degrees to each other. A cradle fits around the plate joiner base and keeps it from rocking on the box corner. The cradle is indexed to the jig with a couple dowels. Use spacer blocks to adjust the spline spacing. Plunge the joiner into the wood slowly to prevent tear-out where the blade exits the wood. With this box, you only need one spacer block; just flip the box over to cut the upper slot.

Click any image to view a larger version.

This story originally appeared in American Woodworker May 2006, issue #121.

May 2006, issue #121

Purchase this back issue.
