Router bit in SketchupA student emailed me and asked: “How do I model the cut a core box router bit makes in SketchUp?” At first glance you might think the answer is the usual – model the shape of the bit and use the “Follow-me” tool. After further consideration it becomes clear that the answer is much more complicated. When router bits are used to make cuts inside a board – as opposed to around its edges – you have to consider the corners. Inside 90-degree corners will be square, while outside corners will have a radius.

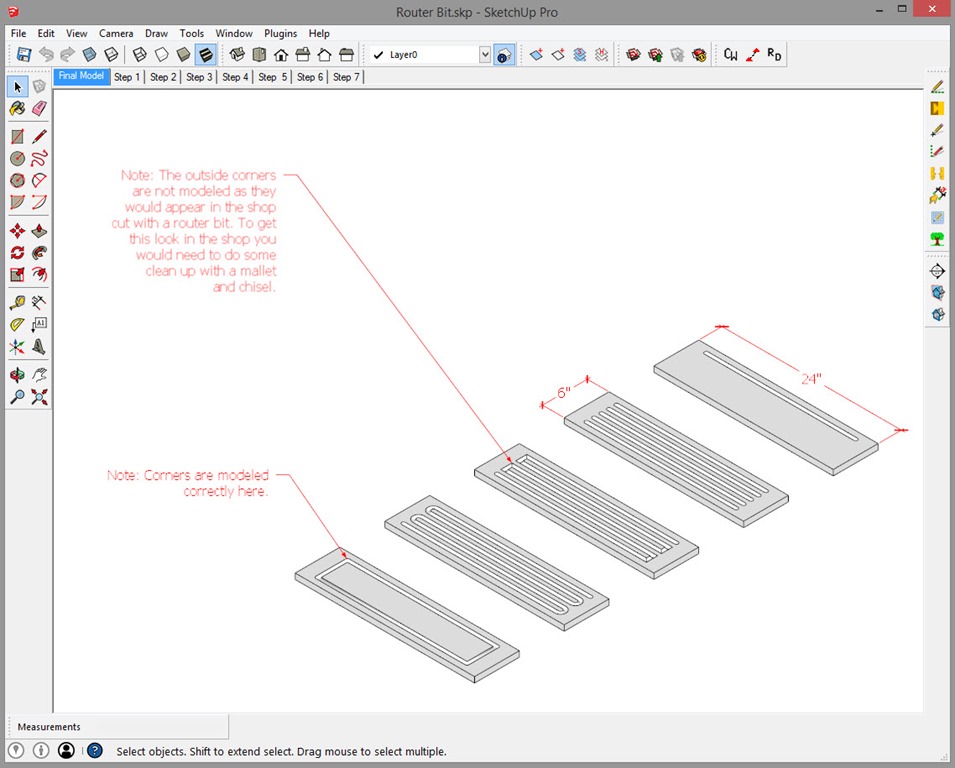

Click on the picture at right to enlarge it and examine the corners. The two outside boards at each end have the router bit cut modeled correctly. The middle board I intentionally left as the Follow-me tool “cut” it without further corner correction.

Router bit in SketchupDownload the Router Bit.skp file and open it. In the scenes tabs along the top you will see seven “step” tabs which show the steps I took to model each board. Be sure to zoom in a lot to see the corner shapes. They are small – above each board and near its ends. The router bit I’m modeling is the CMT-814.627.11 core box router bit shown left. It has a 1/4” radius and is modeled as though the cutting depth is set to 1/4”.

The “Final Model” tab shows the finished model, while steps 1 through 7 show the steps used to model the cuts. But also notice that steps 1 through 7 have been scaled up a factor of 10 using the scale tool. So the boards are 240” x 60” instead of 24” x 6” and the bit has a 2.5” radius with a cutting depth of 2.5”. I scaled the boards to avoid a common problem with SketchUp – if a face is smaller than a certain size, the program will not model it properly, and will leave holes in the model. You can always correct this by first scaling up, modeling, and then scaling down the same factor. But you have to remember the scale factor for each operation you perform.

In the video above I walk you through the 7 major steps I used to model these cuts. The video is short, approximately 9 minutes, and may be sufficient for some SketchUp users to fully understand the technique. However, for those of you who need a more complete explanation, I will be posting a multipart video series in the near future. You will be able to view these blog posts on my American Woodworker blog by going to SketchUp with Joe Zeh. Stay tuned!

Also, check out my latest DVDs on SketchUp 2014, now available in at a special price.

Joe Zeh
