AW Extra 2/13/14 – Drawing Intersecting Rounds

Drawing
Intersecting
Rounds

Joining two pieces of round
stock to make a “T,” such as
where a chair post joins a rail,
requires a tricky intersection.
Your layout must be precise so
that you can fit one piece to

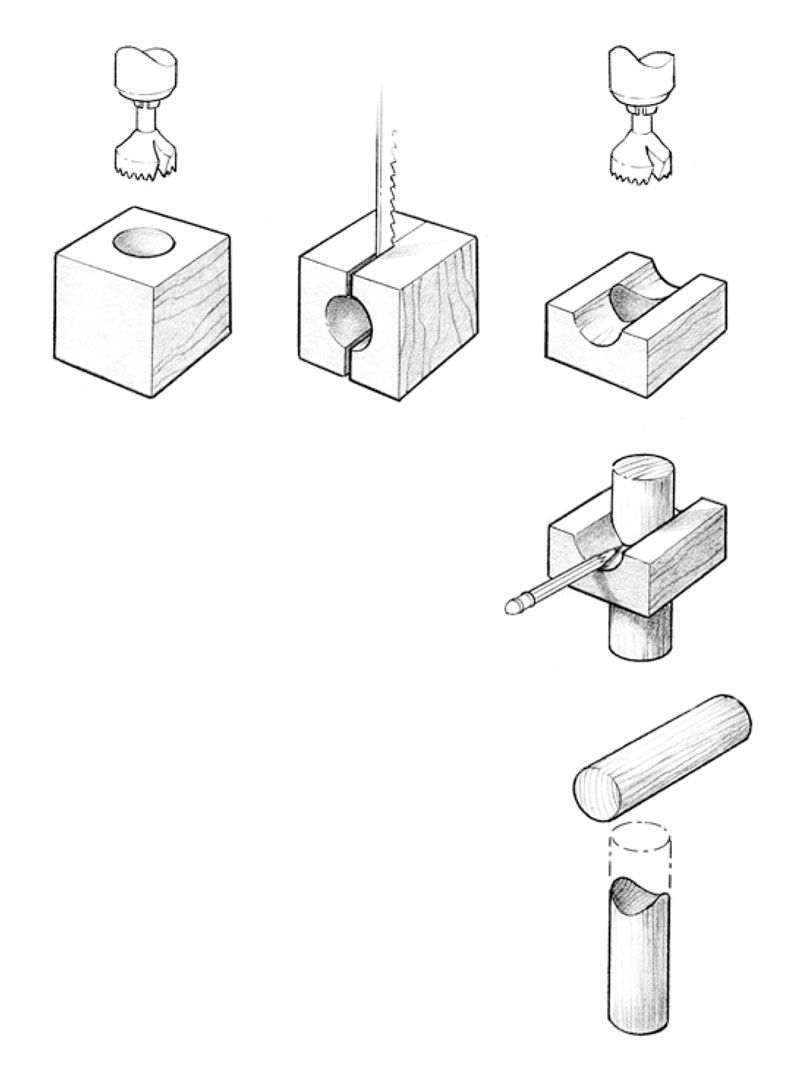

the other. To find this exact
shape, drill a piece of scrap, as
shown, and use it to mark the
correct curve.

This story originally appeared in American Woodworker April 1999, issue #72.
