A good pair of winding laths or winding sticks is sometimes hard to find – I suspect not many have survived the burn pile. The good news is that a new set is easily made in a few minutes at the bench.

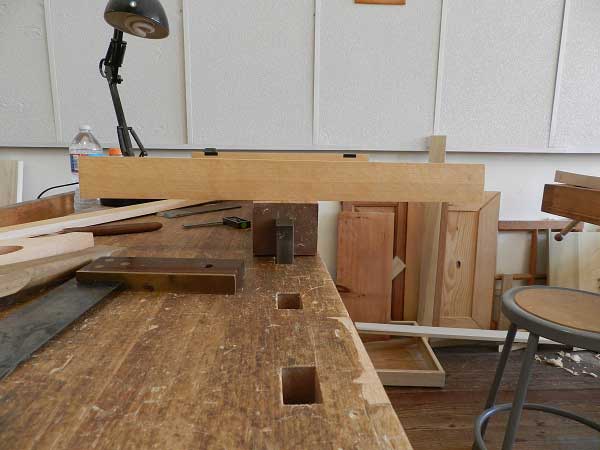

Shop made winding sticks

Sighting down a board with winding sticks. This set was made by my friend Bill Anderson of Edwards Mountain Woodworking.

Why would I want a pair of ‘Winding Sticks’? What do they do?

  • This pair of matching straightedges is a fast and invaluable tool that allows you to quickly see if a board is flat.
  • By placing them at each end of a board, sighting across the near stick and looking at the far one, you can more easily see any twisting or warping in the board. The sticks help accentuate any non-planar surfaces.
  • By moving one stick and sighting the board at a few locations along its length, you will quickly see how the board flows.
  • Using a single stick you can also check for any cupping or warping as you would with any other straightedge.
  • Once you identify parts of the board that need to be addressed, you can quickly plane them and re-evaluate the board using these sticks. (After a bit of practice, the process goes quite fast.)

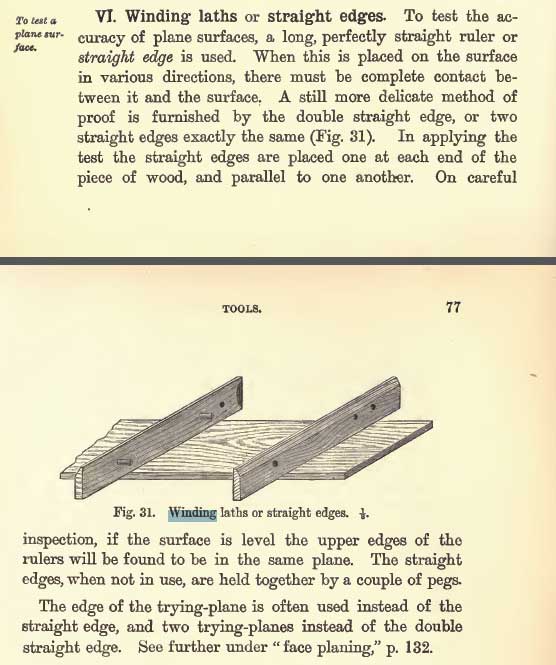

Sloyd Winding Laths

Winding lath by Otto Salomon in the ‘Teacher’s Handbook of Sloyd’ — a great prototype for your own winding sticks

From Otto Salomon’s “Teacher’s Handbook of Sloyd” (above) you can read a nice description for how to use winding laths efficiently. The pair of wooden Sloyd winding laths shown in the picture nest with each other via a set of fitted wooden pins and have a nice relief one edge so you can easily get a finger hold in there and separate the sticks when you want to use them. Salomon also calls out an interesting alternative you can use in a pinch – by turning two handplanes on their sides you can use them as an impromptu set of winding sticks and sight across them.

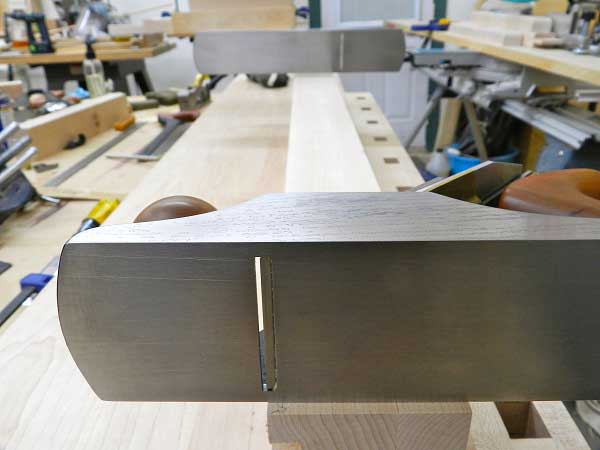

Winding Planes

Sighting down two bench planes as impromptu winding sticks

Hand Drafting FAQ

Two hours of expert instruction from Bill Rainford on hand drafting. Click the picture to learn more about what’s covered and watch an excerpted video.

Tips on making your own winding sticks:

  • Use quarter-sawn hardwood like hard maple or beech
  • Consider adding a contrasting inlay or strip to make it easier to sight across the sticks
  • I like to use sticks that are 1/2″ thick, about 2″ wide and about 18-24″ long
  • Sticks that can nest with each other or otherwise stay together are more likely to survive
  • Taper each stick on one side so that it’s clear which edge is the top (it will not stand on its own on the edge you plane down to 1/8″)
  • If your sticks ever get out of true you can easily square them up again with a plane

The next time you are out in the shop, make a quick set of winding sticks and see how much it can improve your board flattening efficiency.
