The most difficult part of making a folding camp stool (for woodworkers) is the leather or fabric seat. Getting the right shape for the seat and the three pockets for the legs has vexed many people who aren’t accustomed to a material that bends with hand pressure.
These patterns are based on a few years of refinement, and they aren’t perfect in any way. So if you do find an easier way to create them, we are all listening.
This seat is for a typical stool with 24”-long legs that are hinged at 12”. I’m using the new Lee Valley hardware for campaign stools, which is fantastic. But you can make the tri-bolt yourself using hardware-store bolts, eye-bolts and lock nuts.
The Seat Pattern

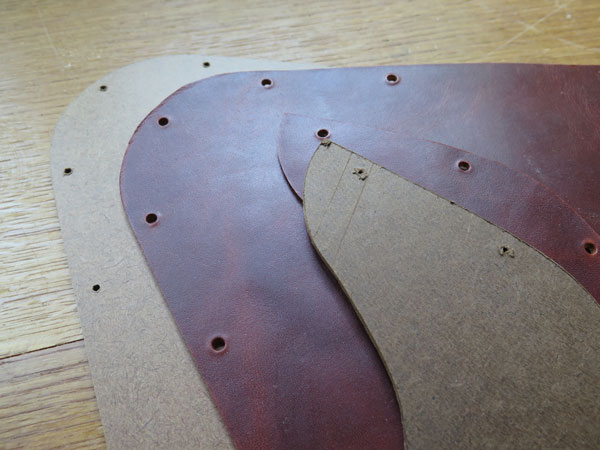

The seat pattern is a 100-percent scale photo of one-third of the seat. Print this out three times, glue them down to a piece of Masonite so they form the triangular seat shape. The holes on the pattern are where the rivet holes go in the material. Be sure to transfer those to the Masonite and drill those out.
Cut the pattern to shape and smooth the edges.
Like the seat pattern, the scan for the pocket pattern is a 100-percent scale photo that includes the locations for the rivets, which will match up with the rivet hole pattern in the seat. Make one pattern from Masonite.
Place the patterns on your material and slice things out. Punch out the holes for the rivets. Rivet the pockets to the seat.
I usually fasten the seat to the three legs with screws. But getting the screws through the leather and into the pilot hole in the legs can be tricky. Here’s how I handle it: I drill the pilot holes in the legs and punch a clearance hole in the leather.

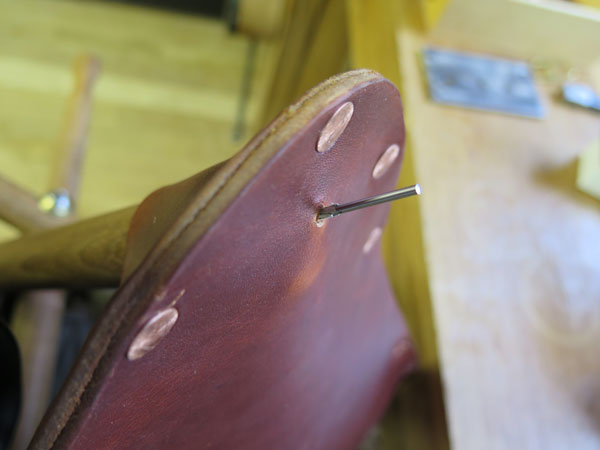

Then I remove the drill bit from the chuck and push it into the pilot hole in the end of one of the legs. I thread the drill bit into the hole in the leather and hold everything tight as I pull out the drill bit. Then I quickly push the screw through the leather and into the pilot hole.
It’s easier than it sounds.
— Christopher Schwarz
