Brands of Dye Stain Differ

dye stain

This is the picture I used in my published article describing the differences in brands of dye stain. From the left: metal complex, metal complex with added acrylic resin, and acid dye. The differences when wiped with water show better here.

For my column in the current issue of Popular Woodworking Magazine, April, 2017 (#231), I wrote about how brands of water-soluble dye stains sold to the woodworking community differ. One of the differences is the degree to which they can be redissolved and lightened by wiping over with a wet cloth.

My point was that you can choose for the characteristics you want, and I included a picture that was supposed to show the differences. But one of the problems with print media is that subtle differences often don’t show up well, and they didn’t in this picture.

So I realized that with this blog I have a second chance in digital media, which I think shows the differences better.

In the article I discussed the three types of water-soluble dyes available: acid, metal complex and metal complex with the addition of an acrylic resin.

dye stain

Acid dyes from Lockwood and Moser are easy to lighten by wiping with water.

Acid dyes are available in powder form as W.D. Lockwood and J.E. Moser at wdlockwood.com, Lee Valley Tools and Woodworker’s Supply.

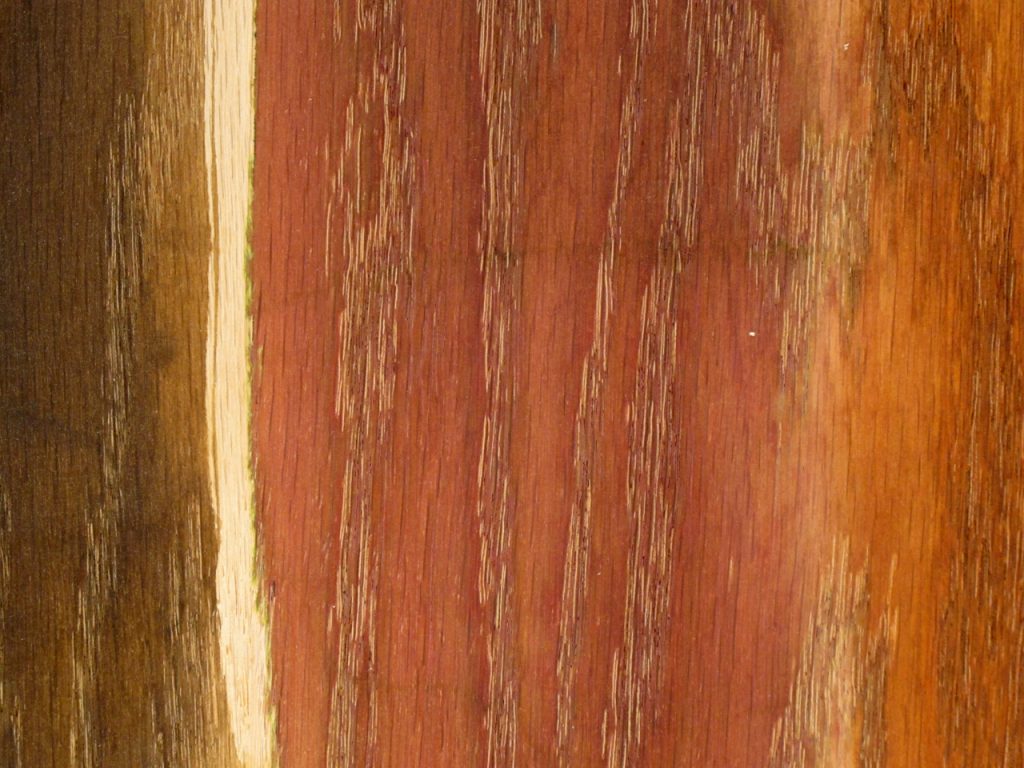

Metal complex dyes from many sources don’t lighten much but can leave darker lines when a water-based finish is brushed directly on them.

Metal complex dyes are available in liquid form as TransTint and Non-Grain-Raising (NGR) from Woodcraft, Rockler, Klingspor and paint stores that cater to the professional trade. They are also often available in powder form from these suppliers and from Lockwood.

dye stain

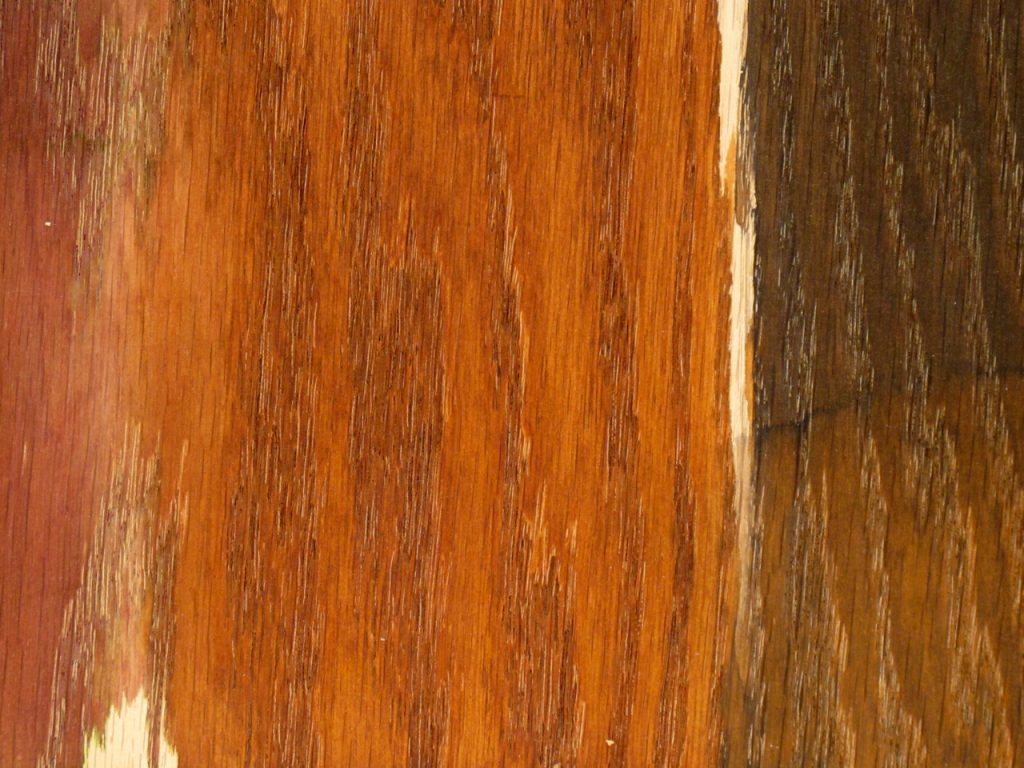

When an acrylic resin is added to the dye, as with General Finishes Dye Stain, no redissolving occurs when wiped or brushed with water.

General Finishes dye stain is liquid metal complex with the addition of an acrylic resin. It is available at Woodcraft, Rockler and .

You can spray any finish over each of these dyes without problems. But brushing water-based finish directly over an acid dye will move the color around and may leave some darker lines in metal complex dyes. You should use another finish as a sealer coat, or spray a first coat of water-based finish, maybe with an aerosol if you don’t have a spray gun.

— Bob Flexner
