Advance copies of “Popular Woodworking’s Arts & Crafts Furniture Projects, 2nd Edition” recently showed up on my desk. The book looks fantastic – a good update of a collection that was a favorite among readers for years. This expanded version features 17 additional pieces (42 projects in all).

Here’s an excerpt by Robert W. Lang on creating a picture frame designed by Charles & Henry Greene, architects who also designed the furniture (most of which was made by Peter and John Hall) that went into the homes they built. Greene & Greene were fond of incorporating a “cloudlift,” a gentle bump, in their designs as well as inlaid ebony pegs in the major joints – both details that can be seen in the Greene & Greene frame discussed below.

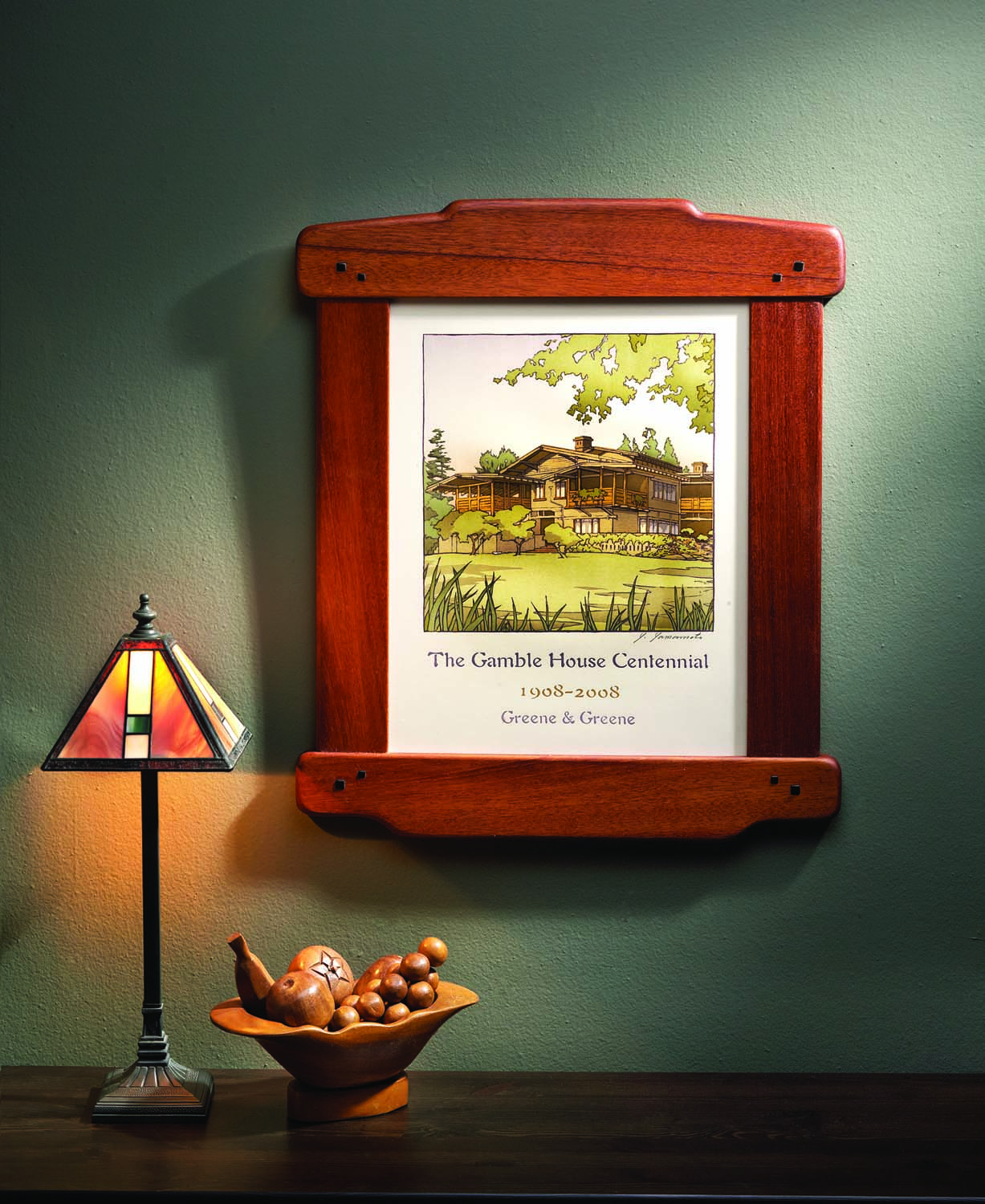

In several of the homes designed by Charles and Henry Greene, items as small as light switches and picture frames were included. Many of the frames have the basic design seen in the photo above: The stiles are within the rails, and the thicker rails extend past the stiles.

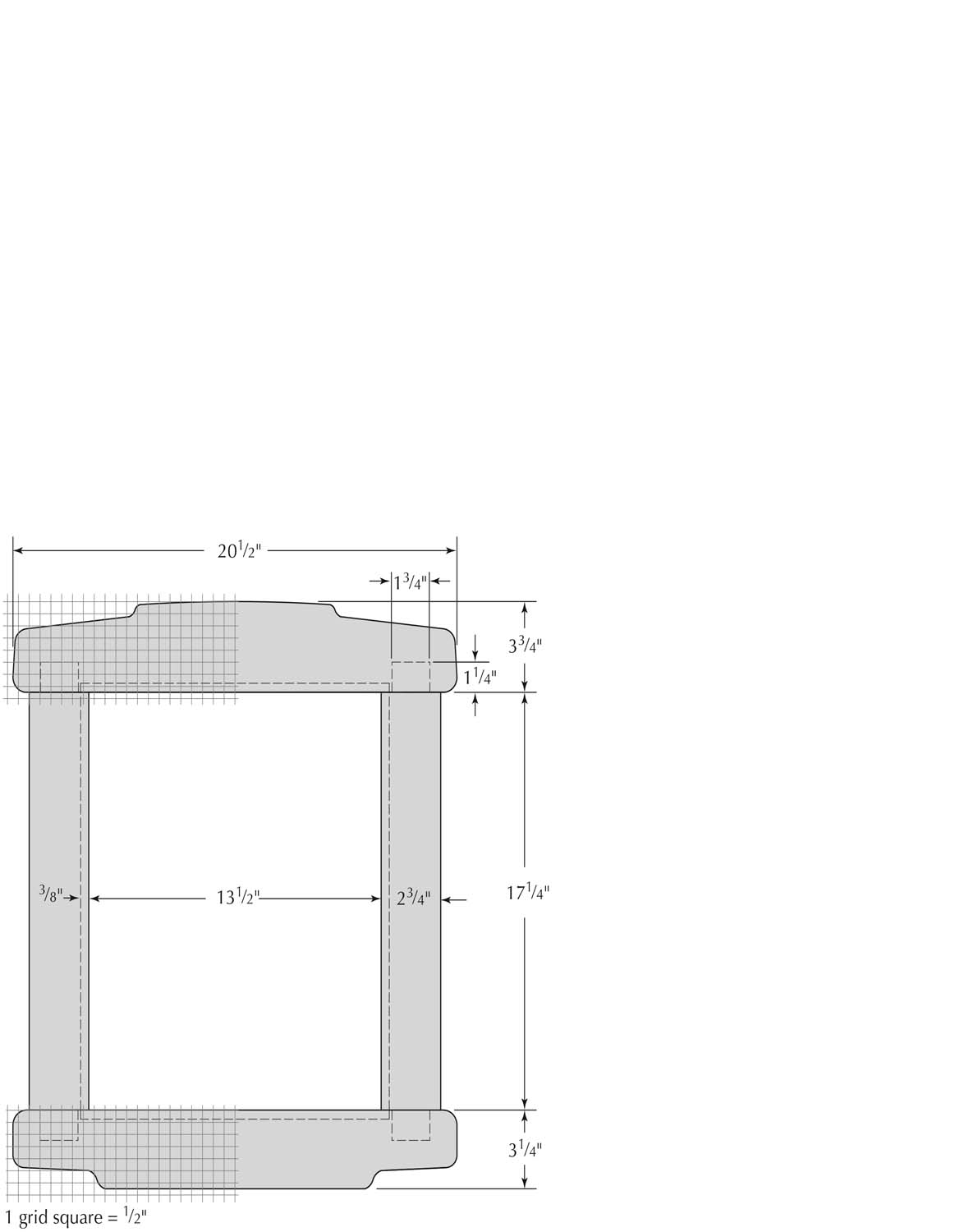

GreeneFrame_partsdimensions

First, the Functional Form
A mortise-and-tenon joint makes the connection at each corner, and I made the joints first. Because the rails stand proud of the stiles by 1⁄8″, I did the layout from the back edges to keep these faces flush.

I made the mortises with a 1⁄4″ chisel in the hollow-chisel mortiser and cut the tenon shoulders by hand. I set up a fence on the band saw to cut the tenon cheeks, and adjusted the fit of the joints with my shoulder plane and a float.

With the unshaped parts dry-fit, I used a router with a rabbeting bit to form the 1⁄2″-deep by 3⁄8″-wide recess for the art. After routing, I squared the corners with a chisel, then marked the locations for the 1⁄4″ and 5⁄16″ square pegs to fall within each joint.

GreeneFrame_measured

Please Ignore the Pattern
The pattern on the next page gives the basic shapes I used, but I would encourage you to try your hand at developing your own design. Begin by making vertical centerlines on the top and bottom rails, then take several pieces of paper, cardboard or thin plywood and practice drawing.

On the bottom rail, the step is approximately 3⁄4″ vertically. Draw a line parallel to the bottom edge, and mark where the edges of the stile meet the rail – this is where the curves begin. The two radii at the end of the rail are roughly quarter circles, but don’t use a compass or a template; sketch them by hand until they look good to you.

Connect the line and edge with an extended “S” shape. Sketch this shape as well, without relying on any instruments. If you don’t like your first attempt, try again.

The shape at the top is similar, but the stepped line angles down about 1⁄4″ toward the outer end. The center portion is a gentle arc, and the two ends aren’t vertical; they angle in about 1⁄8″ from bottom to top. When you’re happy with the shape, transfer the pattern to the wood.”

If you used paper, you can transfer the layout by rubbing the back of the paper with a No. 2 pencil in the general location of the lines. Flip the paper over, tape it to the wood and trace the lines. The graphite on the back of the paper will work like carbon paper.

Over the Edge
The general shape is only half the battle. The edges are all rounded over, but the radii aren’t consistent from edge to edge, and they vary along the edges. Before shaping, mark where the stiles land on the rails.

Start with a radius on the long edges of the stiles. Use a block plane or a rasp rather than a router. The inside edge has a small radius with the corner barely knocked off, leaving a flat of wood next to the glass. The outer edge has more of a curve, approximately 1⁄4″ at the bottom, tapering smaller to the top.

You can’t taper with a router unless you make a jig. You can cut this tapered curve with your block plane in less time than it takes to find the router’s wrench. Begin by making a bevel, then keep knocking off the corners until a rounded shape is formed.

A block plane can also be used for the straight edges of the rails. Be careful to stop before the pencil line that’s drawn where the face of the stiles meets the edges of the rails.

GreeneFrame_rasps

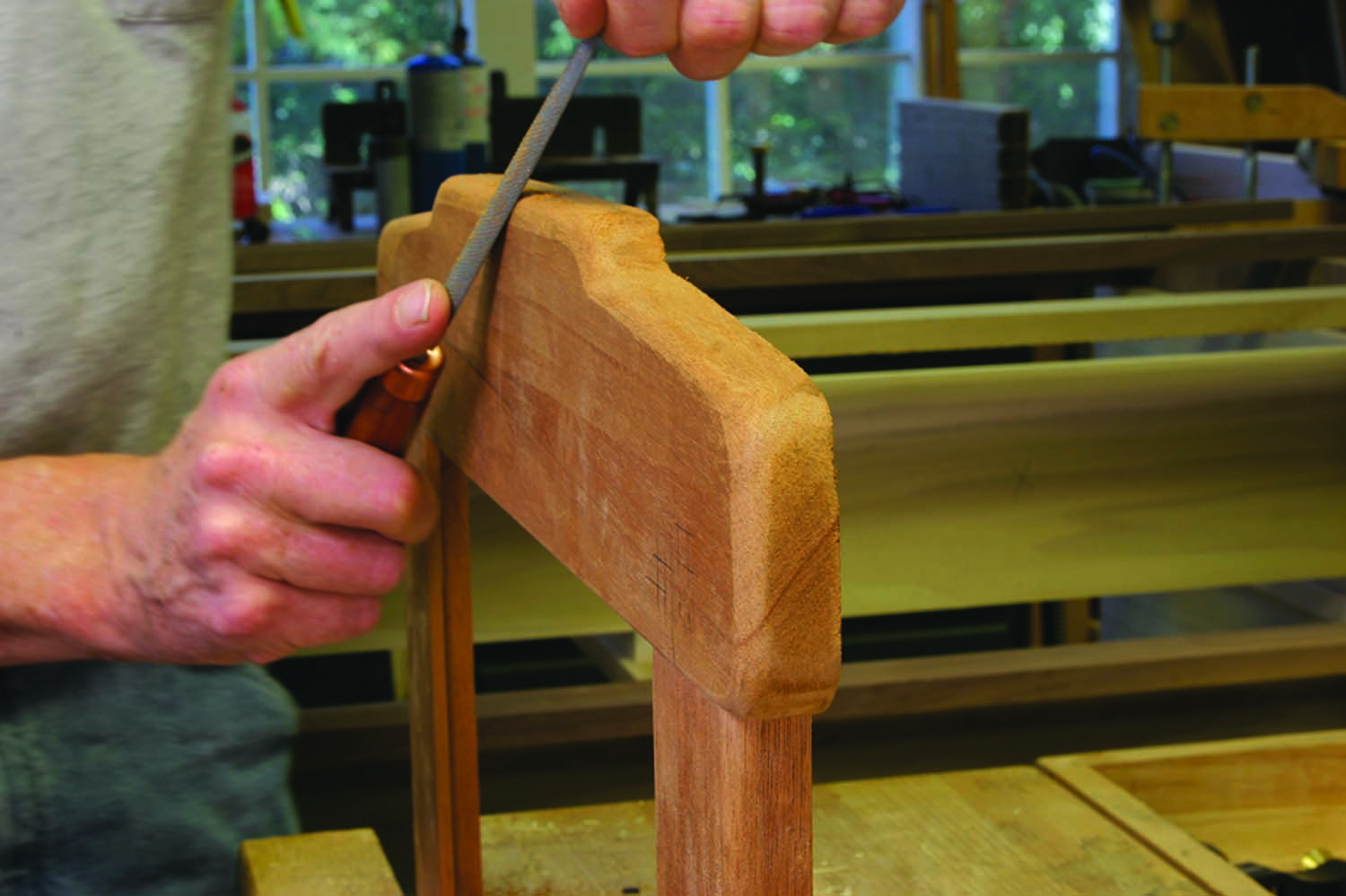

A series of rasps will allow you to go from rough to nearly ready in a short period of time.

A rasp will let you handle the more complex edges. The same tactics used with the plane also work here: Make a bevel, then remove the corners until a curve is formed. Remove more material at the ends as seen in the photo, then blend the shapes together.

GreeneFrame_cardscraper

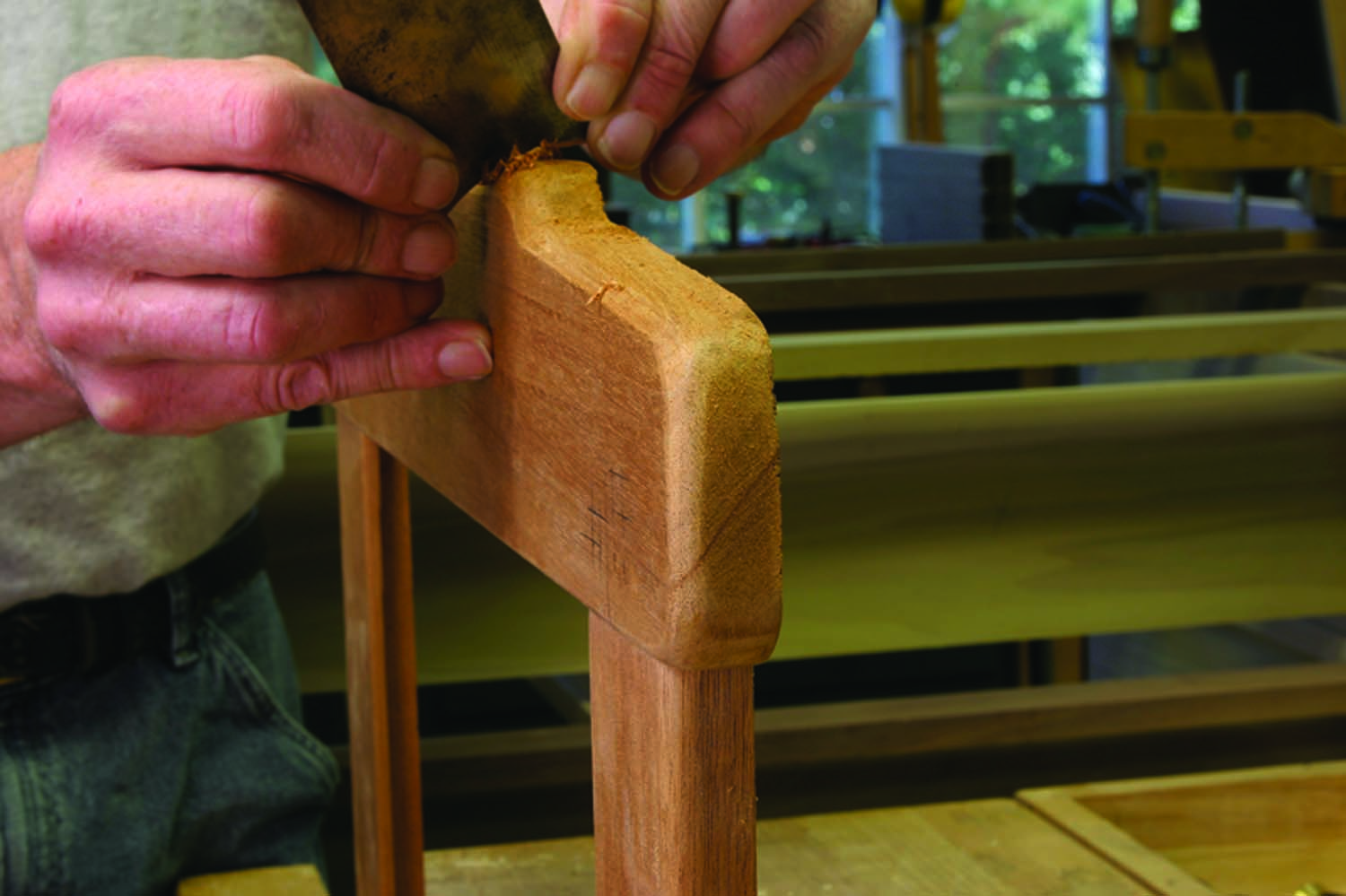

A curved-edge card scraper efficiently removes the marks left by the rasp and removes any high spots along the edges.

A card scraper will remove the marks from the rasp. Follow up with some fine sandpaper to blend the flat areas into the curves, and to leave a consistent surface for finishing. I applied a few coats of Danish oil before mounting the glass and artwork.


For more great Arts & Crafts projects check out the complete book, “Popular Woodworking’s Arts & Crafts Furniture Projects,” available at ShopWoodworking.com. Here’s a snapshot of the great projects included in the book:

Click to enlarge

Click to enlarge
